Ultra HD Video

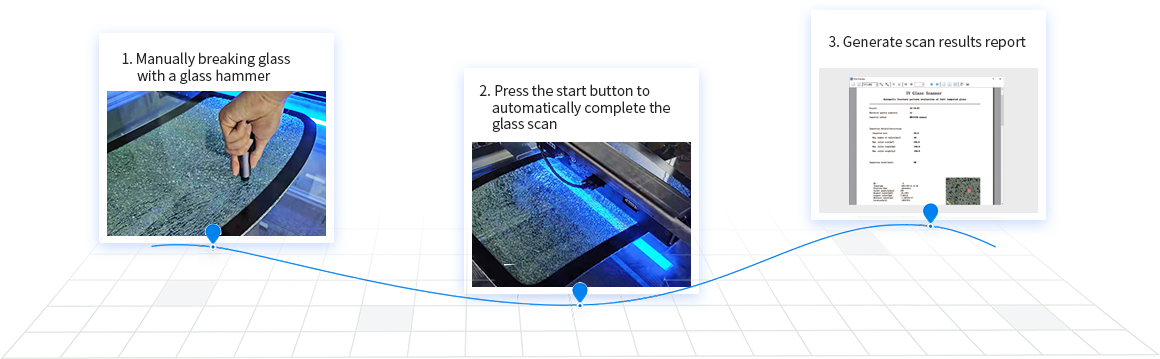

Tempered glass intelligent scanning inspection video
The maximum scanning speed is 20m/min, and the maximum scanning accuracy is 600dpi, which is more than 50 times higher than traditional detection.
The whole piece of glass is automatically scanned and analyzed, and the effective scanning area is 1260mm*1800mm (customized size is supported).
Automatically identify and record the number of single fragments exceeding 3cm2 in the detection area.
Count the position of the 50mm*50mm rectangular area with the largest and smallest number of particles in the detection area, and mark the number of debris particles, the longest length, the largest area and the largest weight in the corresponding area.
The unified testing standard of testing equipment eliminates the subjectivity of manual testing, and the testing results are objective, stable and reliable.
The test results are digitally archived, the test report is automatically output, and the data analysis function is complete.
